Crane Anemometer, Endurance by WINDCRANE
To buy visit www.windcrane.com/store
-
Buy online here

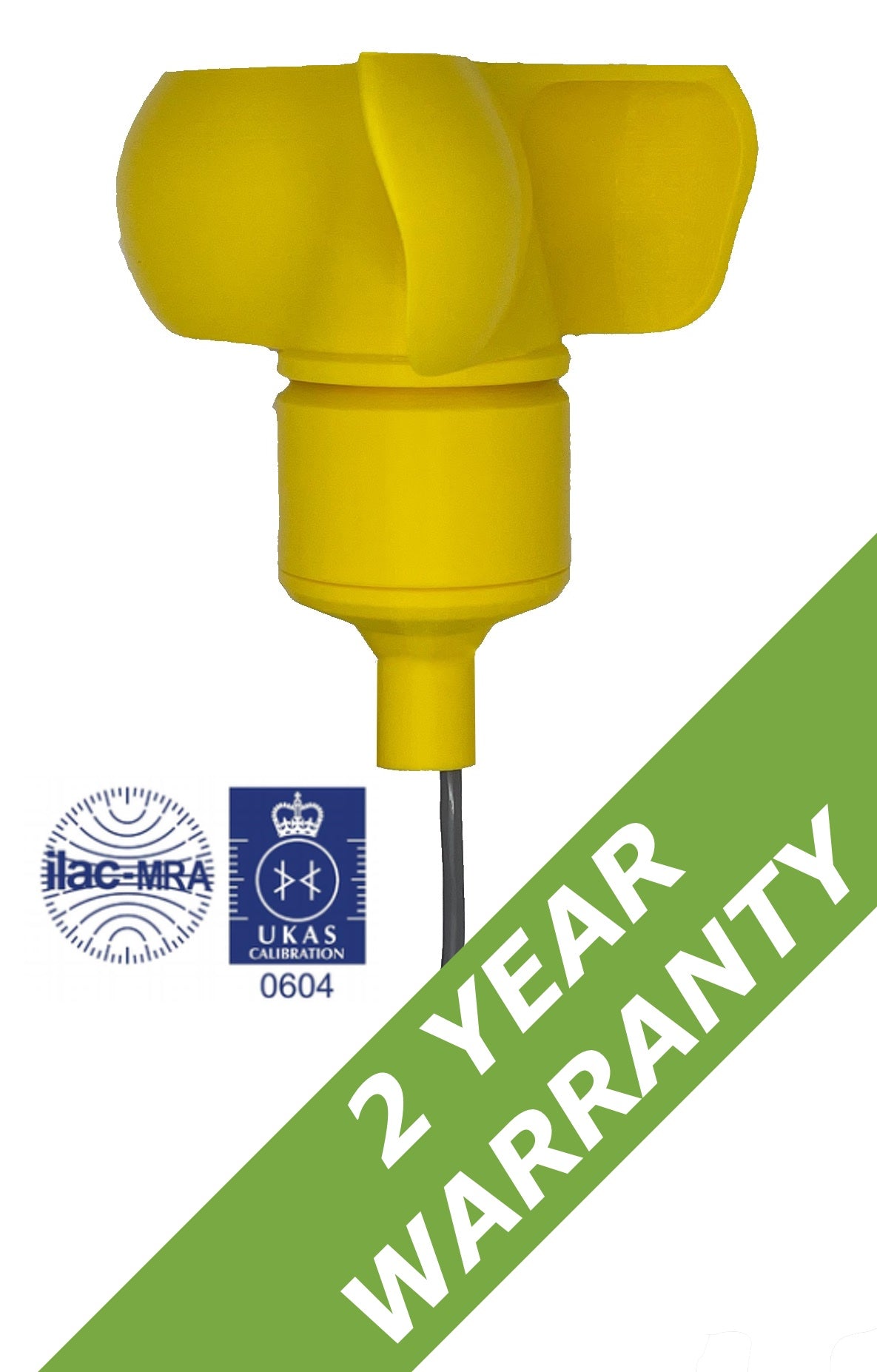

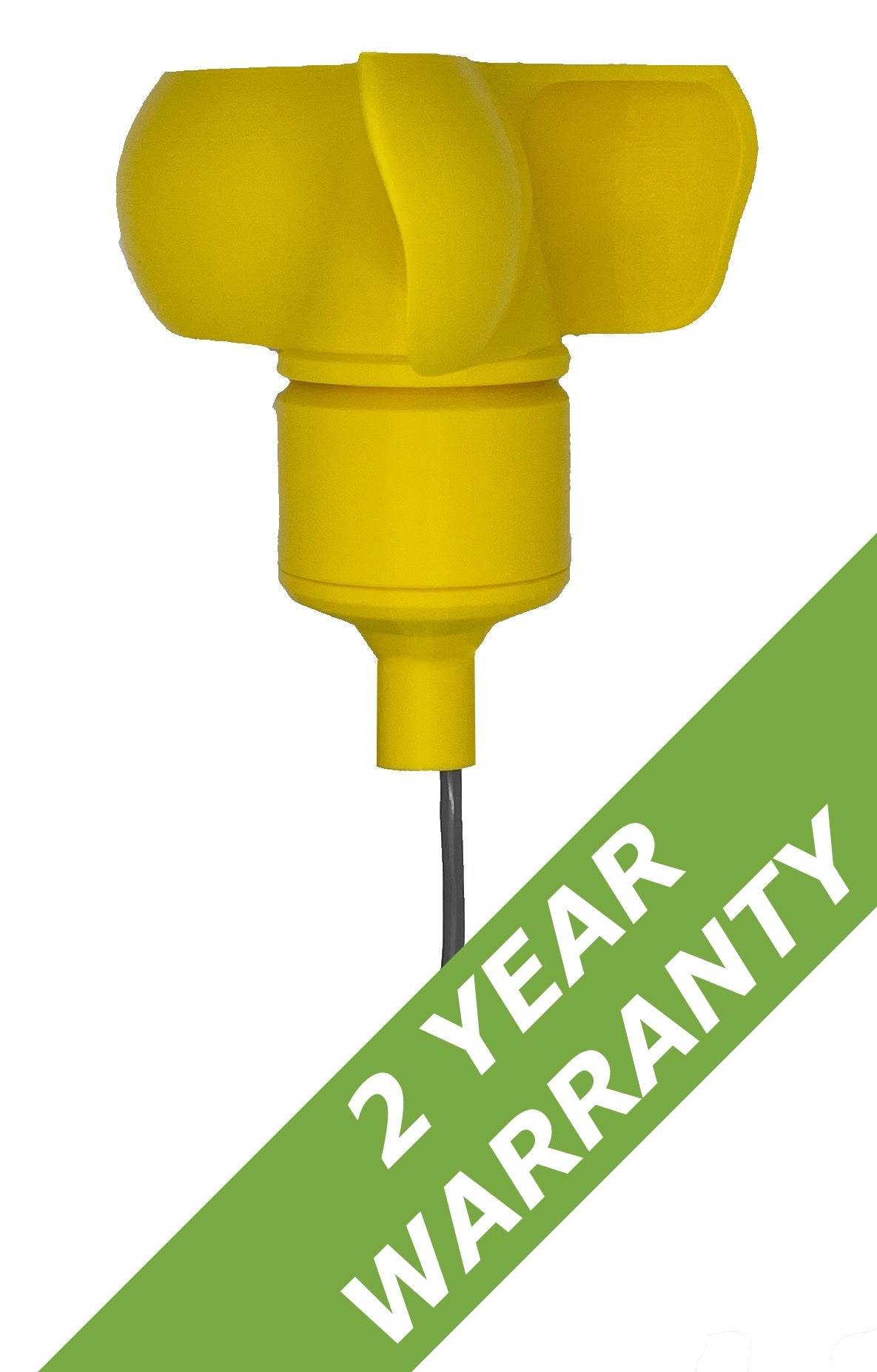

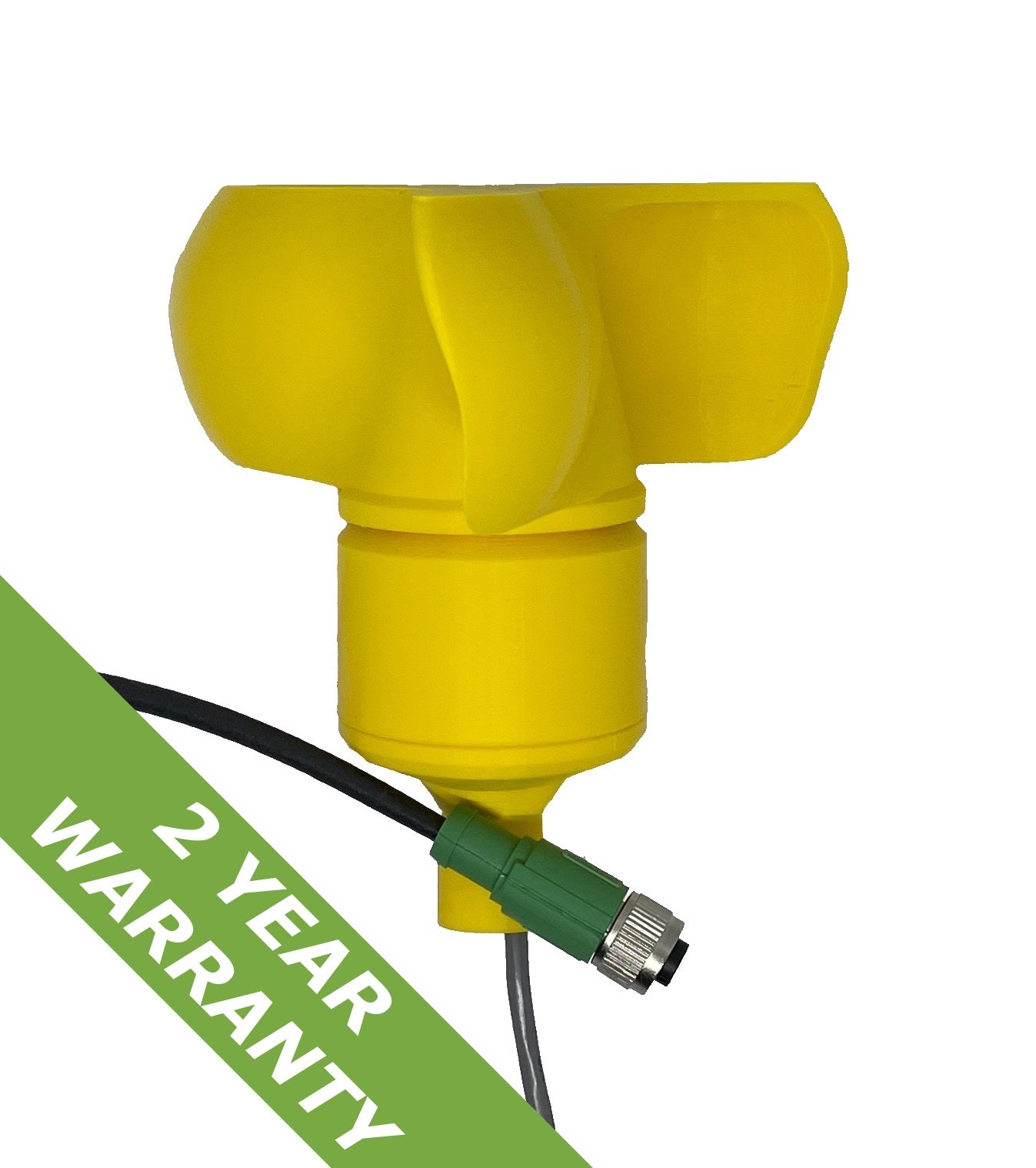

The WINDCRANE anemometer is a tough, high-performance wind speed sensor for use with the WINDCRANE wind monitoring system. It is easy to install and provides reliable, accurate wind readings. The sensor is constructed of durable damage-resistant materials. The sensor is supplied with mounting hardware (mounting foot or tube and clamp) for easy installation onto a bracket/plate or tubular pole stub mast. Connection to the WINDCRANE logger unit is via pre-wired shielded cable pigtail and rugged weatherproof M12 industrial connectors.
This anemometer is compatible with WINDCRANE system and also works with most of dataloggers, PLCs and cranes. The anemometer uses a dry contact signal that can tolerate up to 24Vdc. Please check with us if you need more details.Please Note: Prices do not include VAT. For UK orders VAT is calculated at checkout. International orders are not subject to VAT.
-
Mechanical / Electical
Materials :TPE flexible composite rotor, composite body. Stainless steel shaft and bearings.
Working temperature: -40 °C to +60 °C
Weight: 0.8 kg incl. mounting bracket and 1.5 m cable tail.
Measurement range: 0.5 - 50 m/s (2-180 km/h, 1-112 mph)
Accuracy: 2% ±0.2 m/s (2% ± 0.5 mph, 2% ±0.7 km/h)
-
See the video where we try to destroy the sensor.
