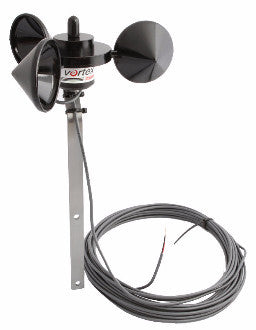

Vortex Anemometer
£88.40
Estimated dispatch time between 1 and 5 days
---- QUESTIONS AND ANSWERS ----
Rugged wind sensor handles speeds from 2.3m/s to over 55 m/s. Reed switch/magnet provides one pulse per rotation, with a sapphire bearing to minimize wear. Comes with exterior grade wire. The Vortex wind sensor is great for do-it-yourself projects, replacement, or additional parts.
The Vortex Wind Sensor includes:
- high quality 3-cup rotor pressed on a stainless steel shaft
- rugged Delrin body with bronze and Rulon bushings
- flat aluminum mounting bracket with 2 holes
- reed switch and magnet providing one pulse per rotation
- 10 meter of exterior grade wire
- Converting pulses to wind speed is simple using the following formula: 2.5 mph per Hz (1 Hz = 1 pulse/second) 1.1176 m/s per Hz (1 Hz = 1 pulse/second)
The Vortex Wind Sensor includes:
- high quality 3-cup rotor pressed on a stainless steel shaft
- rugged Delrin body with bronze and Rulon bushings
- flat aluminum mounting bracket with 2 holes
- reed switch and magnet providing one pulse per rotation
- 10 meter of exterior grade wire
- Converting pulses to wind speed is simple using the following formula: 2.5 mph per Hz (1 Hz = 1 pulse/second) 1.1176 m/s per Hz (1 Hz = 1 pulse/second)
Customer Reviews
No reviews yet
Write a review
Customer Questions
Ask Question
Related Items
![Anemometer & wind direction [Pro-D]](http://cdn.shopify.com/s/files/1/0115/9192/products/Anemometer03_grande.png?v=1430156083)
![Anemometer & wind direction [Pro-D]](http://cdn.shopify.com/s/files/1/0115/9192/products/Anemometer03.png?v=1430156083)
![Anemometer & wind direction [Pro-D]](http://cdn.shopify.com/s/files/1/0115/9192/products/6410.jpg?v=1430156083)
Anemometer & wind direction [Pro-D]
£216.00
This Pro-D Anemometer measures Wind Speed and wind direction when connected to a wind speed data logger like the new WindLogger, WindTracker or our GSM systems.
Pro-D Anemometer comes with wind speed sensor, wind vane and fixings for a 2" pipe (you need to provide wind mast only), 13 meters cable and accessories for installation.
General Specifications:
Sensor Type: Wind Speed - Wind Cups and magnetic switch Wind Direction - Wind Vane and potentiometer
Attached Cable Length: 13m (40ft)
Cable Type: 4-conductor, 26 AWG
Material: Wind Vane and Control Head: UV-Resistant ABS
Wind Cups: Polycarbonate
Anemometer Arm: Black-anodized aluminum
Dimensions: 381mm L x 38mm W x 457mm H
Wind Direction Output:
For more information about the Pro-D anemometer, please download pdf file here
Calibrated anemometer NRG #40C
£388.00
Constructed of rugged Lexan cups molded in one piece for repeatable performance. Includes calibration certificate.
A four-pole magnet induces a sine wave voltage into a coil producing an output signal with frequency proportional to wind speed. The #40C is constructed of rugged Lexan cups molded in one piece for repeatable performance. A rubber terminal boot is included.
Features
This anemometer is often used for wind resource assessment for wind turbines, they are 1% accuracy and have a resolution better than 0.1m/s to match the IEC-61400-12 standards for wind measurement and wind turbine performance analysis.
The #40C anemometers are manufactured with exceptional quality control meeting new standards- all units are tested mechanically and electronically before shipping.
This anemometer is compatible with our GSM wind monitoring system only
Wind vane NRG #200P
£328.00
This vane is directly connected to a precision conductive plastic potentiometer located in the main body. An analog voltage output directly proportional to the wind direction is produced when a constant DC excitation voltage is applied to the potentiometer. A rubber terminal boot is included.
Features
Sensor type continuous rotation potentiometric wind direction vane
Sensor range 360° mechanical, continuous rotation
Accuracy potentiometer linearity within 1%
Dead band 8° Maximum, 4° Typical
This sensor is compatible with GSM wind site assessment devicesDownload more information
