WINDCRANE Max is for projects where more advanced monitoring is required and extra sensing. Super tough and weatherproof with a total of 14 sensor inputs.

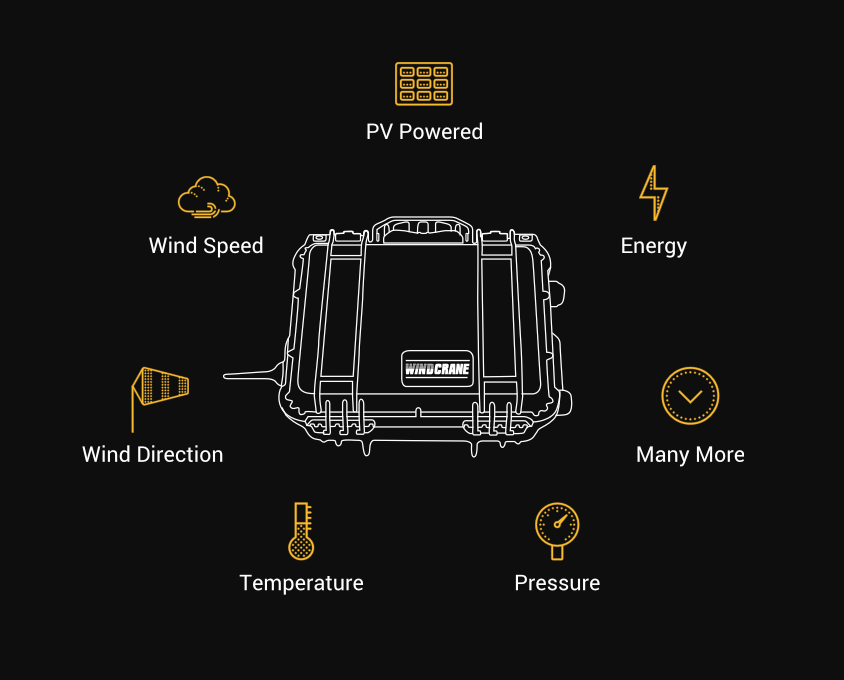

You can connect multiple different sensors for monitoring almost anything, from weather stations to energy, water level, pressure sensor, humidity, rain etc…

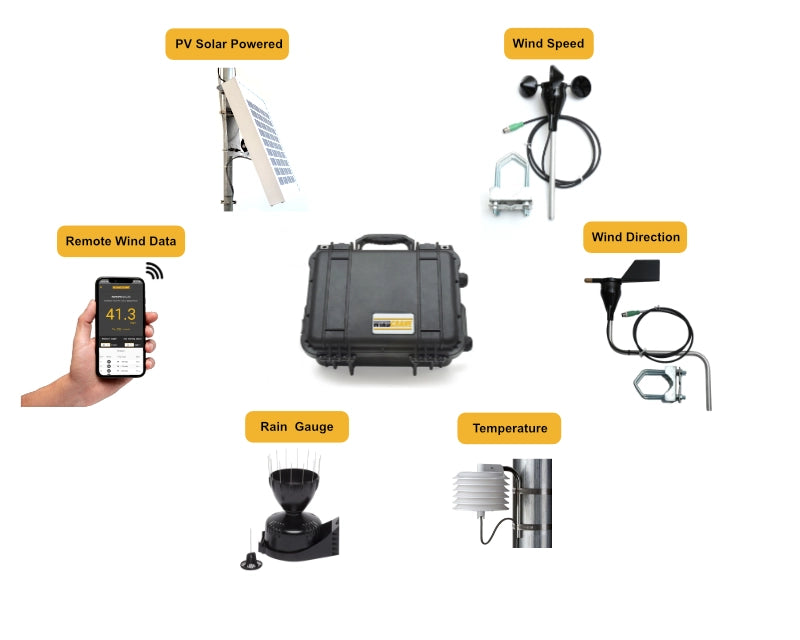

Supplied with multiple sensors and can be mains electrical or solar powered.
What we offer with our WINDCRANE DATA SERVICE

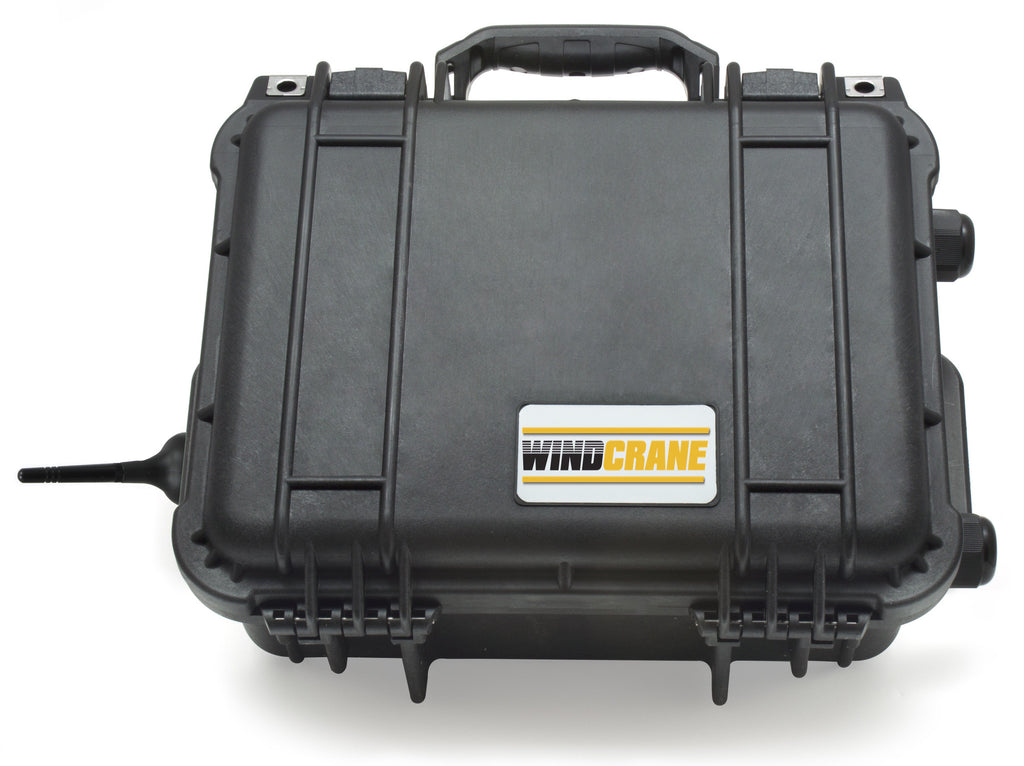

Enclosure : Weatherproof Pelicase (IP67rated) with back plate for wall or pole mounting.
Dimensions: 290x390x150mm(WxHxD when mounted vertically, incl back plate).
Weight: 5kg approx (enclosure with logger, battery and input cables).
Mounting: 4no10mm dia holes at 70x340 mm centres. (WxH).
Supplied with U-bolts to suit tubular mast , M12 connectors for sensors/accessories.
4 x wind speed anemometers(pulse/switch or low-voltage sine wave sensors).
2x wind direction vanes.
4 x analogue inputs (0-10VDC,0-3.3VDC,0-20mA)for other sensors:
Environmental sensors: temperature, rainfall, solar radiation etc.
Power and industrial sensors: current, energy metering, water level, etc.
Internal temperature, humidity and barometric pressure sensors as standard.
Or you can find more information at its dedicated website www.windcrane.com

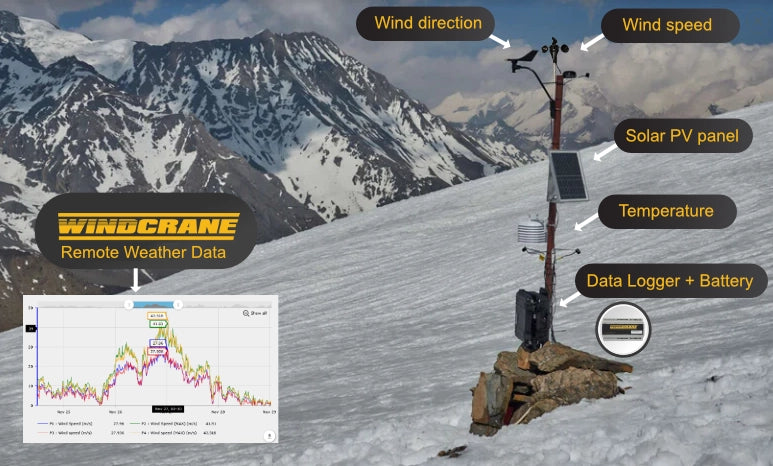

Suitable for extreme conditions researches, outdoor events or in isolated locations where there is no power.
It is tough, durable and weatherproof and can be used under very demanding environments like the Antarctica or Atakama desert. Also research project was done in the Himalayas using WINDCRANE systems to discover how the local wildlife - such as yaks and snow leopards – are able to cope with the brutal weather conditions. Click the link to read the article about Himalayas project.
