Active Temperature sensor with radiation shield

Added Add to Cart

Estimated dispatch time between 1 and 5 days

---- QUESTIONS AND ANSWERS ----

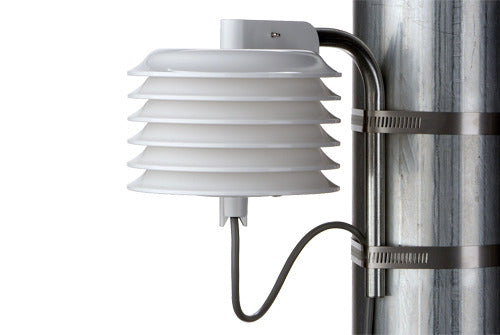

The #110S temperature sensor is an integrated circuit temperature sensor that provides a high level voltage output signal. This sensor is ideal for collecting temperature data for energy density calculations and monitoring air temperature at remote sites.
The #110S temperature sensor includes an internal reference, amplifiers, and linearization enclosed in a six-plate UV-stabilized radiation shield. This temperature sensor is also an excellent addition for sites where icing may be a possibility.
The universal mounting assembly mounts quickly to any pipe or tower.
We can offer the same sensor with a traceable calibration certificate
Sensor type integrated circuit temperature sensor with six plate radiation shield
Sensor range -40 °C to 52.5 °C (-40 °F to 126.5 °F)
Signal type linear analog voltage
Transfer function Temp = (Voltage x 55.55) - 86.38 °C / [Temp = (Voltage x 100) - 123.5 °F]
Accuracy: offset is +/- 0.8 °C (1.4 °F) maximum / nonlinearity is +/- 0.33 °C (+/- 0.6 °F) maximum / total error +/- 1.1 °C (2 °F) maximum
Output signal range 0 V to 2.5 V DC
Supply voltage 4 V to 35 V DC
Operating humidity range 0 to 100% RH
This sensor is compatible with our GSM systems
